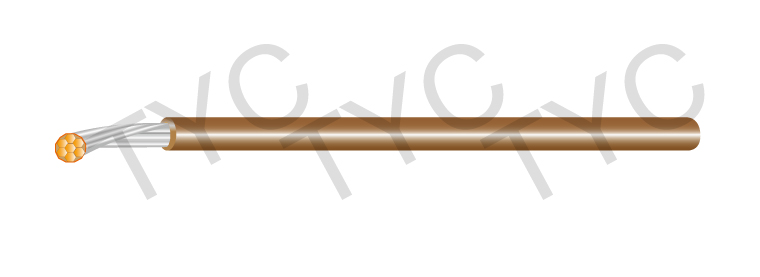

UL1007 wire
Product application
Cable ul1007 has ULcUL authentication can be used for markets in North America and Europe, widely used in industrial equipment, electrical connection, including electrical cabinet, control room, connectors can also be for lighting, applicable to project wiring. Better flexibility, easy installation, space saving.
Product structure
Conductor: what a fine twisted into a bundle of bare copper wire, conforms to the UL758 standard.
Insulation: high quality PVC material
Wire color: according to the RAL card or according to the standard
Outer jacket: no
Product characteristic
Working voltage: UL+Cul U0/U:300/300V U:300V
Test voltage: 2000V
Insulation resistance: 20M ohm /KM (20 C)
Minimum bending radius: approximately 4 * D (cable outside diameter)
Working temperature: fixed installation: -20 to +80
Flame retardant: accord with FT1, VVV-1
